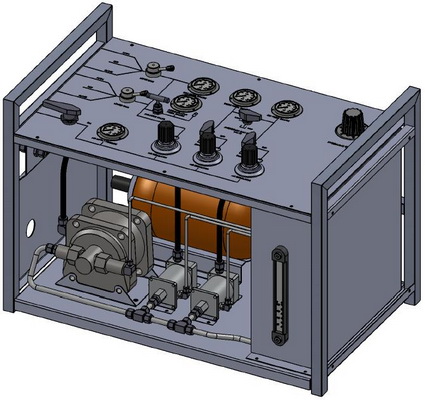

This compact air driven wellhead control panel is designed to operate in outdoor field environment or installed into a slickline truck compartment. This panel requires an external compressor unit to operate.

Technical Specification:

•  Function:
•      - Dual RAM BOP
•      - SCSSV
•      - DHSV
• Weight and Dimension:
•      - Weight: 100 Kgs
•      - Length: 950 mm, Width: 560 mm, Height: 650 mm
•  Feature
•      - 38 litres reservoir tank
•      - All Stainless Steel Construction
•      - 10 litres accumulator

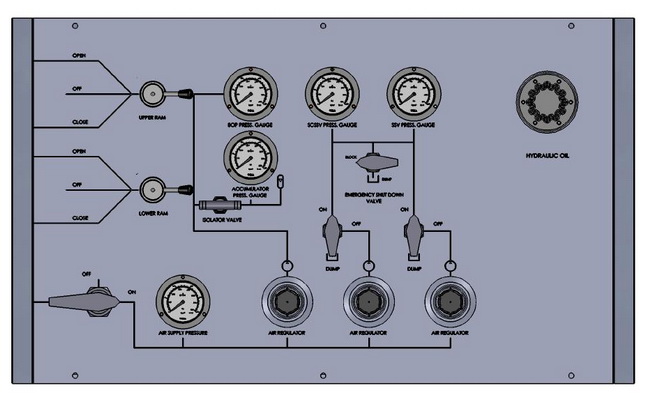

•      - Machine engraved, Stainless Steel, Colour coded panel
•      - 3 ea Air Driven Hydraulic Pump
•      - High quality valves, gauge, tubing and fittings throughout
•  Option:
•      - High Pressure output for SCSSV and DHSV
•      - Hose reel
•      - Remote ESD system

Testing and Certification:
•  - Structural Manufacturing Standard according to BS EN ISO 10855 : 2018 and  DNV 2.7-1 for standard offshore container certified by: Bureau Veritas Factory Acceptance Test Certificate
•  - Factory Acceptance Test Certificate

User Handbook

•   - General Information
•   - Safety Precautions
•   - Operating Instructions
•   - Preventive Maintenance
•   - Parts Book
