Zone II Diesel Electric Generator Set - 30Kva

  Next Product

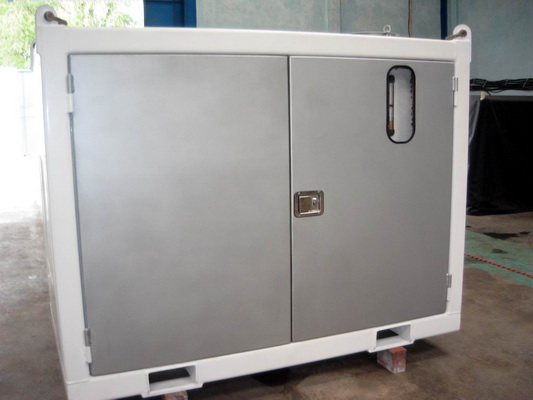

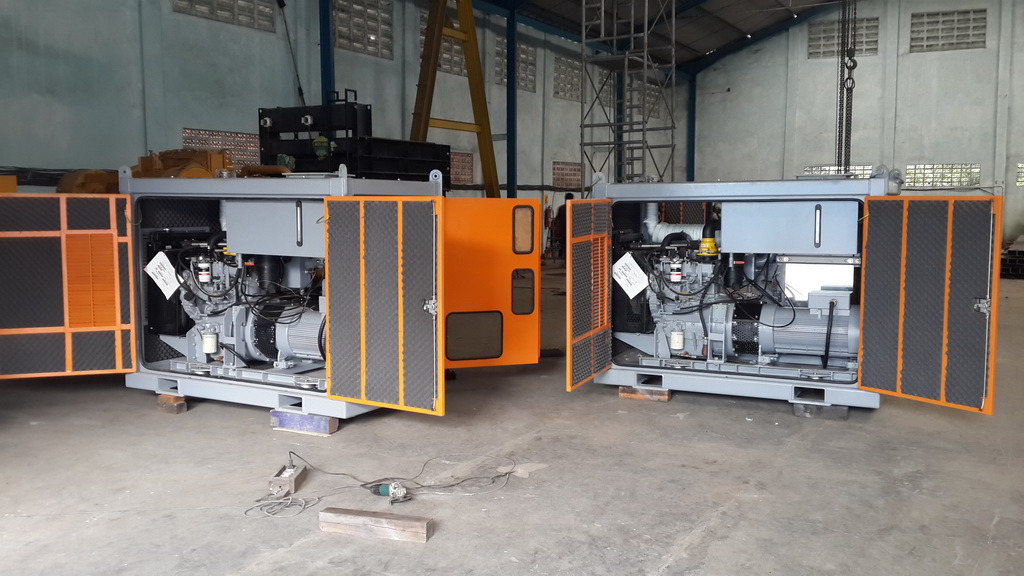

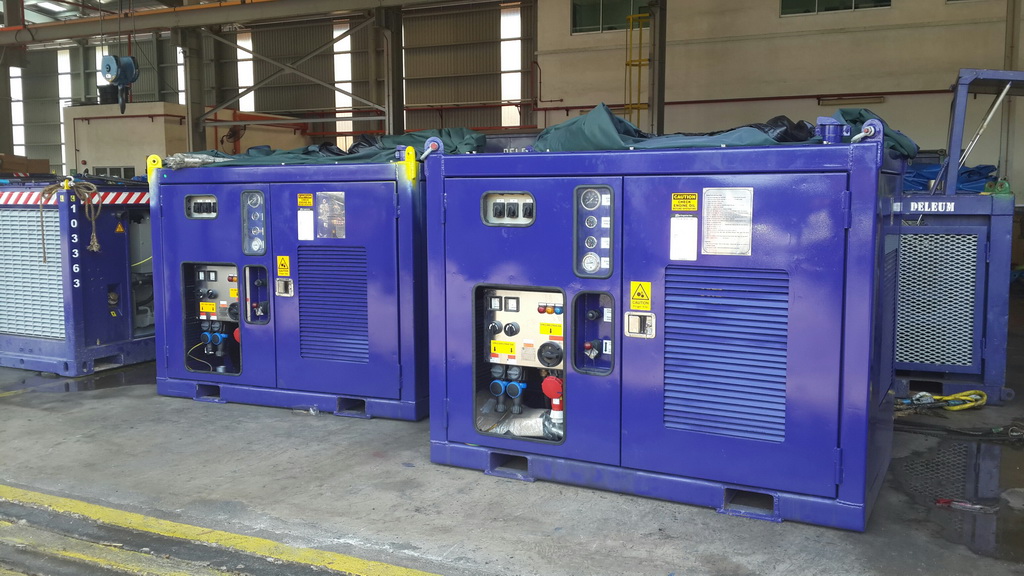

This diesel driven-30KVA electric generator set built and assembled in one skid mounted close frame diesel generator set for Zone II hazardous area classification.

The unit is designed and built to meet the requirements of the followings standards and regulation: EEMUA-107(Diesel engine for hazard area), IEC 60079 and IEC 60259 (Electrical equipment in hazard area). The final assembly reviewed & certified by Bureau Veritas

The principal of protection and operation is: to limit all surface temperature of T3:200ºC and provide automatic shutdown of the engine when safety parameter is abnormal. The Diesel generator is for operation in an ambient temperature range from -10ºC until 40ºC

Technical Specification:

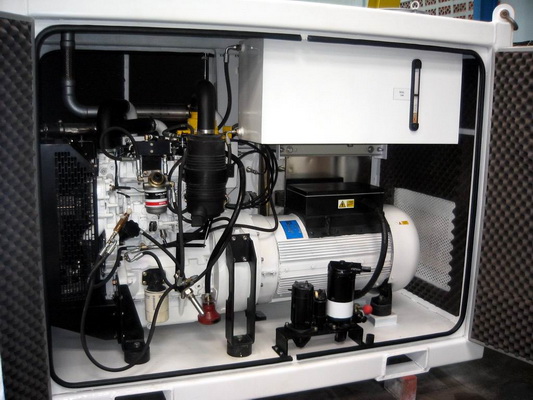

  •  - Perkins Engine type 1103A, 3 cylinders, 3.3 Liters.
  •  - Prime Power 43.2HP at 1800RPM
  •  - Stainless steel dry type Exhaust Spark-Arrestor complied to ATEX 1834 approval standards
  •  - Stainless steel Secure Dipstick-engine oil level
  •  - Non Electric/Mechanical Spring Starter

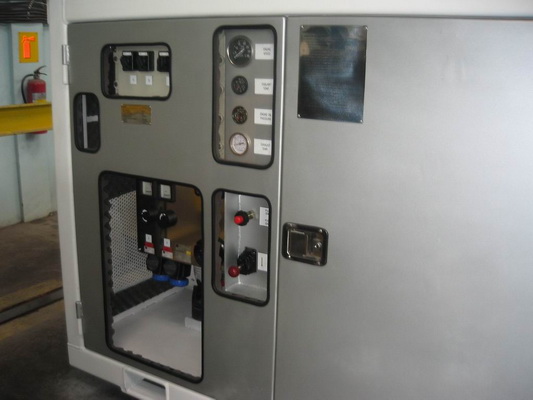

  •  - Basic Control Panel :
      •      - Tachometer (RPM Gauge)
      •      - Engine Oil Pressure Gauge
      •      - Water Coolant Temperature Gauge
      •      - Engine Throttle Control Knob
      •      - Engine Stop Knob
      •      - Exhaust Temperature Gauge
  •  - Engine Safety Shutdown System is designed to automatic shutdown of both air intake or/and fuel line, in event of abnormal safety parameter such as:
      •      - Engine over speed ( > 2000RPM)
      •      - High coolant temperature (max 100deg.C)
      •      - Loss of Engine Oil Pressure
      •      - Loss of Control System Pressure
      •      - High exhaust temp. (max 200deg.C)
  •  - Brushless Alternator 30KVA with protection code EEx nA IIA T3:200ºC Zone II and IP 54 of protection degree with Class H insulation

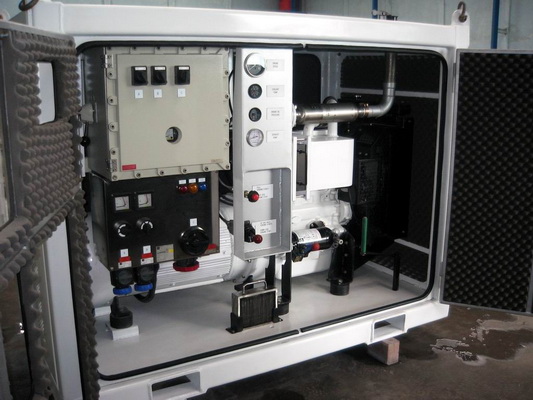

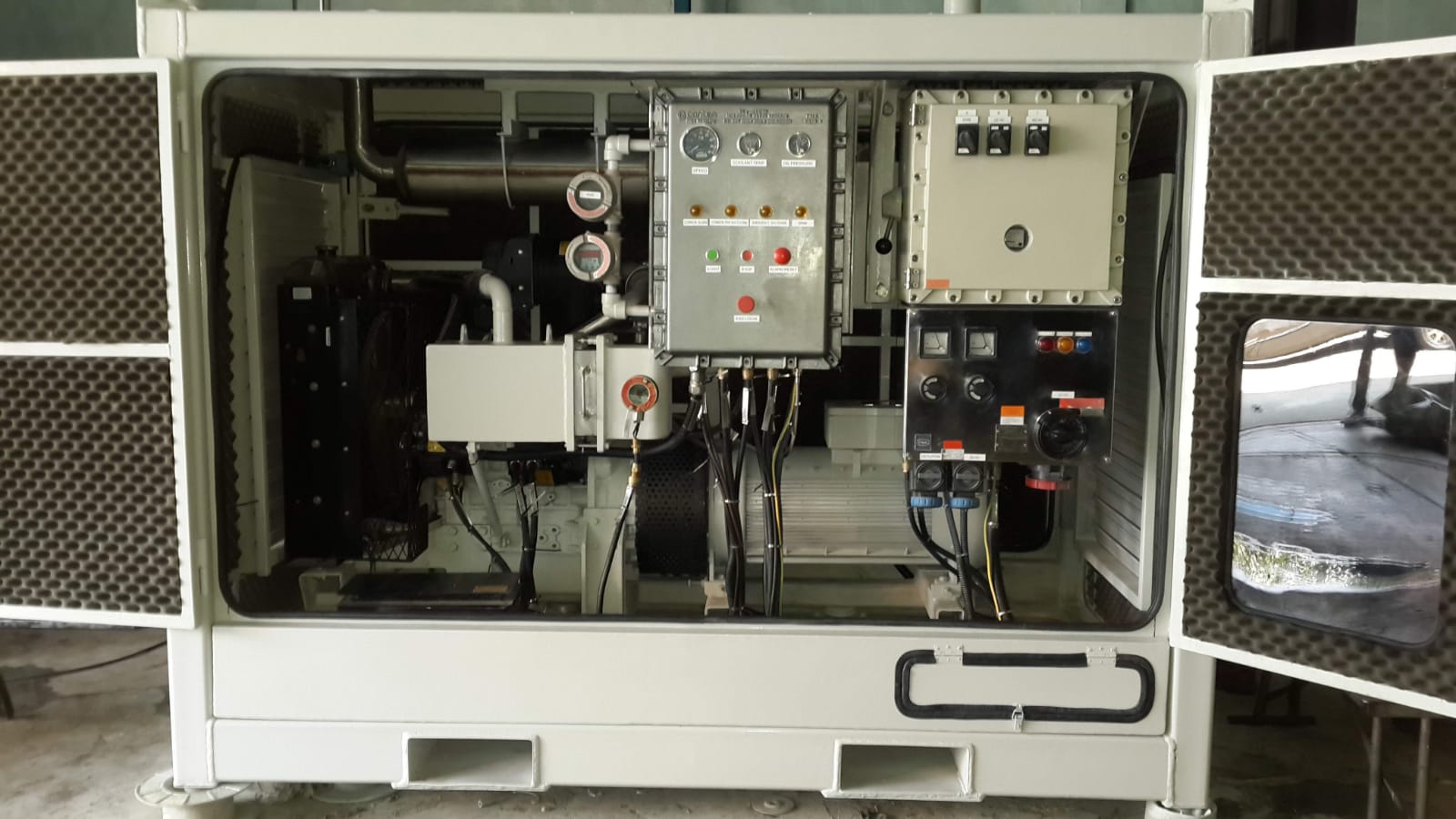

  •  - Explosion Proof Electrical Control Panel with protection code :Ex II 2 G EEx de IIB T4, IP65
  •  - Frame Dimension : L2000xW1100xH1500mm

    Testing and Certification:
  •  - Structural Manufacturing Standard according to BS EN ISO 10855 : 2018 and  DNV 2.7-1 for standard offshore container certified by: Bureau Veritas Factory Acceptance Test Certificate
  •  - Factory Acceptance Test Certificate

User Handbook & Parts Book
